Digiprog3 V4.94 Clone odomter Correction Feedback

Loooooooog post here ,this is Most Comprehensive Digiprog3 reviews ,Writing this post for Digiprog3 V4.94 mileage correction feedback, thanks real users' real test reports.

This post content:

Here we go one by one.
Part 1: 2017 year feedback of Digiprog3 V4.94 Clone
VW Bora 2008 micronas + 24c32 via OBD OK!
VW Jetta 2012 Nec + 24c64 via OBD OK!

worked on Mini cooper S clubman 2008 (r56) (For CAS OBD, For Dash R270)

twingo 2003 vdo. cable 34. worked fine.

Porsche 997 gt3 2008 obd ok.

Car 2014 VW Tiguan Diesel OBD2 OK DIGIPROG 3 CLON

Fiat grande punto 2012 obd with (fiat doblo 2007->) read ok write ok

Audi a3 2011 with digiprog works fine, use the diag -2012 option. of dash goes black. then do the same again.

2014 US VW Jetta GLI VDO DSG Ok by OBD
Suoer Fast If Engine Running
Set TPM of After Reset Service & Clear Codes
Disconnected Batt Reconnected Than All Dash Lights, I had to turn steering wheel straight,
left then right and straight again then test drive and went back to normal.
I used Golf 6 Option.

Digiprog done Audi a3 8p 2003 Ok

ford transit 2006 24c16 via st1 read ok write ok
Fiat Doblo 2017 --- OBD OK

Fiat 500 2012 via obd2 -> OK
Fiat 500 2017 obd OK
I test my on vw grupe and work perfect until golf 7
Peugeot 106 plug43 --- Okey

toyota lancruser 2010 cs86 ! on eeprom ok

I done a Ferrari California with Digi 2min obd

I did a Ferrari 458 with digiprog. the mileage in ferrari cluster is a very easy system. The tools only needs to read the eeprom, we know digiprog can do this witg other cars without problem, so if it reads the correct mileage then i dont see much risk.
(And it is a clone, but the software is same as original tool)
But the mileage is also in the ecu of ferrari.

Can read eeprom 95320 (gateway of Audi A6 C6) by Digiprog 4.94 clone by clips SOIC8?
and save to *.bin file.

- Can correct opel astra g 2011, Astra g is 93c56 (2001), Astra h is 35080 (2007), Astra J is in Bsi (2011) , all work with digi prog fine

- change the mileage of a mercedes clc 2009, Digiprog is possibe.

- Question: Can I connect to pc to transfer eeprom data from and to digiprog?
Answer: if you FTDI chip inside, you can, if you don't have ftdi chip you can't connect to PC

ftdi
- nissan nv200
yellow - bdm
brown - gnd
green - reset
white - 5V
use qashqai HCS12 works 100% see attached pics for pinout from backside of cluster no needle removal quick job
digiprog pinout nv200 cluster pinout-01


Part 2: Digiprog 3 V4.94 mileage correction feedback in 2016 year:
  1. Mercedes W251 R350 2010 ok OBD
no sync problems no can filter needed

  1. Digiprog do all Golf 4 without problem!!!  Golf 4 BOO via OBD OK

  1. BMW X1 2013 - no bmw after 2002 can go by obd, you have to program the 35160 chip in cluster and the cas4 (or fem?) module.

or cluster + can filter cable behind cluster to block cas. but digiprog can't program 35160

  1. dp3 clone will do a 2010 Audi A6 dash via obd, it will takes a while to find code but will do it.

  1. w219 works as w211 just flashes dash obd

  1. Mercedes class B W246 use direct in OBD digiprog 4.94
  2. To read and Save mb w211 2003 cluster eeprom, need to desolder it.
  3. Digiprog 3 4.94 clone can do Mercedes E550 2004 via OBD but will put ezs to 9999999..
  4. 2004 touareg obd ok
  5. 2014 Audi A1 with the 4.94 version ok
  6. Aveo 2012 OBD ok digiprog clown

2012 Chevrolet Aveo obd on the new type cluster or the old type as per picture
  1. vw polo, seat ibiza 2007 magenti marelli motorola ST48 by points OK
    nissan navara , pathfinder motorola ST48 by points OK
    AUDI A3 2010 by OBD OK
  2. Audi TT 2002 obd2 n8 is ok work
    Audi S3 2002 obd2 is ok work
    Audi A3 2002 obd2 is ok work
vw t4 2002 diag obd t4 1998  write ok
  1. Vw fox 2007 hc912 by solder point and ST48 work
  2.  volvo xc60 obd -2010 ok
  3. Skoda Octavia 1z 2011 OBD ok
    Mitsubishi galant 2006 93C46 ok
    Mercedes vito 638 2003 OBD ok
    Saab 9-3 2009 HCS12 ok
    Audi A6 2002 ok after some effort.
    A6 OBD told me it was m73 D09.
    A6 M73 OBD gave me the 999999 checksum error.
    The A3 repair 999999 with st41 left me wondering what to do with those two extra cables but AUDI MM 4_99 HC12.pdf sorted that out!
    Both st41 and st48 has wrong colors but with pinout sheets you will do fine!

  1. digiprog can do a 02 chevy avalanche, remove the dash and use ST47 with this. Use Tahoe on the menu.
    Won't do the hours though, that has to be done manually with eeprom menu as S95P02.

99-02 pinouts
Note: that is the only way, you can't do it with OBD with a Digiprog. Dash out in 60 seconds, takes all of five minutes to remove the board and solder to it and program it.

  1. Audi A4 2010 Work
Audi a4 2007 obd dash read ok write ok/ecu make-it via touran edc16 write 2 times to change.
Golf 6 plus 2010 work ok

  1. Mondeo 2010 visteon dash with 9s12 read ok write ok via 4 wires on pcb.

  1.  digi can do gmc yukon 2008, you have to disassemble the dash and do by eeprom. Use Hummer H2 2007- 95080 chip, make a backup first.

  1. To use correction mileage hyundai I10 to digiprog3, no connection i10 mcs12hy64 to digiprog ....if its 24c08 use plug 1.

  1. Correct audi a5 2012 ok

  1. 2012 audi Q7 20 sec by obd work ok
    2014 porsche panamera by eeprom 95640 work ok
    version 4.94

  1. Vw Tourag 2013... read ok but write failed :/

25.
Peugeot 307 2002 ---> Work
Dash ---> NEC (New ST59)
BSI ---> HC12
Peugeot 307 2002
Peugeot 307 2002-02
  1. Audi Q7 2007 --->OBD work

  1. Skoda Fabia 2009 OBD write ok
Skoda Fabia 2010 OBD write OK after second try

  1. I did Some cas by diag but most give unknown version.If Digi gives you wring milleage press * and other milleage Will be shown.Btw cas 2 Will not work by obd (maybe by dashplug or wires direct to cas.Both not tested by me, if i remove i prefer direct by prog.

  1.  by obd all golf 6 digiprog 3 clone work good for me till 2013 year.
I also range rover with same dash, soldering on back of board, no problem, you have to take dash out and solder on back of board. U can use BMW 35080 option.

  1. Fiat Grand Punto 08 by OBD works 100%, but you need to use menu Doblo.

  1. Skoda Fabia MK2 2009 diag yes no problem

  1. fiat ducato 2014 obd dash ok
ecu 95640 unknown version,but nyo 2015 suport

  1. Test VW UP work great OBD. i confirm vw up 2012 goes with digi 4.88 2-3 minutes the dash goes black after calibration no panic igntion off -on

  1. dp3 clone can do 2010-2011 vw tiguan odometer via OBD.

  1. sharan 2001 digi 4.94 /write ok / vdo dash

  1. T5 2004 dash & ecu via obd write ok 10 seconds.Ecu edc 16 read ok/ write ok 7 minutes

  1. audi a4 8e b6 bj. 2004- Very good, 2 minutes

  1. 2011 Vauxhalls Vivaro... 93c76.... All good... read and write..93c76 option not available under Renault Traffic so use Vivaro or maybe try Renault Master as has 93c76 option that seems as though it would work, have not tried, read ok but didn't i write chip...

  1. opel opel insignia 2013 obd --OK

  1. for the keyless go mondeo, take it out and mileage corrected direct, no need to remove eeprom.

  1. Hyundai Terracan w nec, adapter st59, 100% ok, working

  1. my experience with digi 4.88
Chevrolet Corsa obd ok (after unplugging battery for a few secs)
Vw AMAROK 2012 obd ok 1 min
opel Astra 2000 obd ok
chevrolet Montana obd ok
chevrolet Cruze 2011 obd ok
chevrolet Cruze 2012 obd didn't work. remove BCM next to left foot passenger seat you'll find 24c16 ok

  1. digi 4.94 ford mondeo 2004 st51 read ok/write ok

  1. Procedure: merceds A 160 klasse 2005 goes with digi
You can do dash with dash plug.
But first make good Back-up of eep.
But you need ezs too, you can block communication by putting 999999 in dash put it back in the Car ignjtion on and ezs wil take 999999.
Than you put ori dump to dash and change like you want.

  1. Opel Astra H ---> 35080 Clip Work
  2. passat obd ok
06 focus obd ok
09 s-max obd ok
05 fiesta obd not ok
digi 4.94 passat 2013 OBD ok

  1. For Caddy 2012, you need to choose another car in the menu, choose VW T5 2012 Diag, Also you can choose Golf.6, the both are ok mate just plug and play.

  1. digi 4.94 golf 5plus by obd -visteon dash read ok write ok. It's ok can do it without any problems don't worry just plug and enjoy.carprog clone not work on visteon dash.digi is ok.

  1. Q: the ST 59 works with all digis or only the one delivered with it and wjere it can be ordered
  1. Pinout for 01 bmw x5 e53
Color chart included to cross over to digi.
35080 chip, you need to erase first or use a new chip, don't think digi will erase them. x5
COLLORS
  1. Q: Which cable do I use to do an 06 accord without removing the needles?? I have this pic which I pulled from this site?
06 accord
A: ST47, but you only use 12345 & 8
Cable 47

Q: Today has arrived my Digiprog3 from Ali. I tried, to connect to my car via OBDII (Seat Leon 1M, year: 2000) but it says with both option (diag, diag bosch, diag ECU): no connection. The cable was connected right, i'm sure.

Yesterday, I tried an Opel Corsa D with my digiprog, it's semms like working.
Today, I removed my Leon's dash, pictures attached.
Now, I'm sure, it's a VDO dash. How can I connect directly to the odometer, with my digiprog?
t's strange. I connected to the Corsa the OBD cable, and read the old KM.
But, the main question is the Leon.
I find on the motherborad, the memory chip: 93C86
If I connect with the clip cable to the 93C86, is there a chance to write that?
Attached another pictures, about my accessories. FYI, my cable is not bad because with an Opel Corsa, the digiprog working.Opel Corsa D -01
accecories
A: You can't use st16 to do a corsa D
Corsa d old with digiprog wow
Desolder read and see what value it gives
FYI, 50% of digi not work on k-line......best is yanhua digiprog

  1. Q: Mercedes W212 how to change with tacho diag or EZS ??
A: For this car use ezs option!
The facelift model is not possible. so don't try.
If you have digiprog 4.88 you also can do the full color screen of the w212. if you have 4.94 then you can do only black/white screen.
After correction do 'fehlerspeicher' to delete errors in dashboard.
Do 'assist manager' to delete service history.
if it is a diesel engine most times you get dpf error. and the car will drive max80kmh. until you reset dpf.
Remember: if you use the ezs option. digiprog will program 999999 miles in ezs. this way it blocks ezs-tacho synchronization.
it's better to use a canfilter, this way ezs will have old mileage. of you use can filter you must use the 'tacho diag' option.

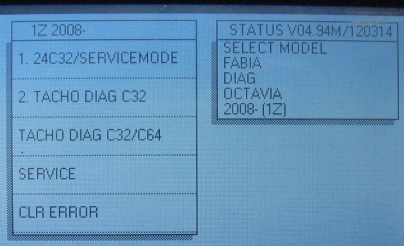

54 Q: how to work with the service mode?
Изображение 010
A: make-it via obd. first time blocked on 0000 but second try it works. Second try I mean disconnect completely en retry, ignition off.remove obd plug put it back ignition on and try.when is ok you will see 0001-0002.....not stopped on 0000.

55
Q: I have a toyota yaris(2011), and I wanna change the mileage. But when I try to connect the Digiprog with the eeprom, it says "can't find chip".
I'm using connector 1, and keep the chip incircuit.
De chip is a 93c56, SMD chip
What do I have to do?

A: You have to look first wich eeprom on circuit my experience with some toyota that they use a smal 93C46 wich is not in the menu i wil give you an exempel i had to do a corolla verso 2007 in the menu it says if i remember 93c66 ichoose 93c66 i couldnt read "chip not found"i i looked closer it was a smal 93c46 wich is not in the menu of verso avensis i choose another option in the toyota menu with 93c46 i think it was celica and it could read chip the morality of the story look first wich chip itis on the board and from there work with it . good luck
dont remove nothing toyota always read on circuit look if there is an condensator close to the eeprom and shunt the legs. Don't matter toyota or any brand always safer to remove for read/write eeproms

56.
Q: Can digiprog work on this golf 7 dash - any suggestions what is ideal tool for this type of cluster via obd
golf 7 cluster
A: Smelecom can do golf 7 vdo dash but only certain versions. If it's Johnson control then no tool can do

Fail list:
1 Hyundai I10 9S12HY64-use upa usb ...digiprog can’t do it, Digipro can’t read D flash memory , so it cannot read and write this kind of mcu like Hyundai eon,Hyundai i 10 so use UPA USB can do it.

  1. Not suport audi A3 2014 dash 8V , obd not connect. And for genuine tool Very hard to do this Car.

  1. dont try to do 2010+ volvo with digi, if you are lucky it only wont work, otherwise...

  1. - Dont try to use digiprog to read cas it wil end with faillure dead cas, get the r260 red clone it works perfect.if you look in youtube under digprog3 hc 12 or 11 and st 53 you wil see it.

Part 3: 2015 year feedback:
  1. Digiprog 4.94 tested ok results:

  • For VW, Audi, Skoda vehicles:
VW Tiguan 2007 ---> OBD OK
VW Passat 2007 ---> OBD OK
Passat 2013 obd..ok.
Seat MII 2013 ---> OBD Work
passat 2011 work obd 5 min
passat 2012 work obd
passat cc 2012 work obd
jetta 2012 work obd
Skoda Superb (3t) II 2009y only by obd less then 5min
A6, 2009 work OBD, 4-5 minute.
golf mk5..ok
Volkswagen Eos obd2 ------ok
Skoda Roomster 2009 ---> Diag work Perfect
vw eos 2007 ---> Diag obd2 work
Skoda octavia 2009 1.9tdi instrument ok, ecu ok, dsg reset ok
SKODA Fabia 2009 obd ok. fabia -diag-read ?-write ok. (digi4.94)
Golf 6 2012 obd ok
Passat 2011 menu dash diag -2012 read ok/write ok /3 minute.
audi a4 2010 obd ok, audi a3 2010 obd ok
no problem with audi a3 for now 2011 and 2010 doing ok by obd
passat 2006 dash work
golf 2007: dash and dsg ok
300 m 2009 ok
jetta 2014: ok test Many Time always ok
tiguan 2009: ok test Many Time always ok
wrangler 2012 ok
Golf 4 MM Just open dash en look voor 24C** it takes 2 minutes
passat 2011 work by OBD
Vw Jetta 2013 take golf 6 on car list. Work fine 2 minutes
skoda superb 2011 nec+24c64 obd works fine.


-Works 100% polo 6N 2001 - diagnostic -ST16 - doesn't show old mileage but writes perfect - on cluster display where mileage shows while writing it shows error for about 5sec then check written value on DigiRemember to reset service reminder.
2013 polo vivo
VW Tiguan 2011 OBD no problem, takes about 10 minutes

VW evoque 2012 work by OBD

  • For BMW vehicles:
BMW E46 2004 ---> 35080 Clip Work

  • For Ford vehicles:
Ford Fiesta 2012 ---> OBD OK
Ford Fiesta HCS12 ---> ST48 Work
2012 Ford Focus - 95320 - by ST1 work ok


  • For Mitsubishi:
For read & write correct Mileage use
Mitsubishi Outlander 93C86 V2 ---> Work Perfect on Peugeot 4007 2012

  • For Mercedes Benz:
w211 2005 dash via st60 read ok/write ok/ezs sync blocked ok.
E39 m5 dash done with digi using st47
MERCEDES w210 E - DB 4_99 with Stecker 10 , ok!

  • For Opel:
-Opel Vivaro 2013 ---> EEPROM Clip work 93c76
-Astra J 2011 work by OBD.
-  astra g 2001 write ok 10 seconds
- astra h 2006 - m35080 - work
-Opel Insignia 2014 ---> OBD Work perfect
Opel-Insignia-1-6-SIDI-Turbo-004
  • For Fiat:
Fiat Grande Punto EVO 2011 dash-- obd OK.... fiat doblo
Fiat Ducato 2012 work perfect OBD
Fiat Doblo 2009 ---> OBD Work perfect 1 sec. Job

8)Other models:
Galaxy 2008 new model by the OBD ok
Successfully made chevrolet orlando like a opel insignia

Digiprog  read/write 35080 for 100%.

Range Rover Evoque 2013 via obd ok

Nissans: 2002 Altima 93C66 OK in circuit with Murano; 2001 Xterra 93c56 OK unsolder with Patrol

Toyota RAV 4 2007 ---> eeprom clip 93c56 work


- Made : sportage 2012
Swift 2014
Ranger 2010
Prado 2006
Runner 2006
Navarra 2012

All eeprom on board ...i did NOT try obd
- salvage Yard
nitro 2009 ok
patriot 2013 ok
2015 xtrail does work with digiprog 4.94, chip 93c86 worked a treat
volvo s80 2008+ work good 10min.


Thanks all real user of digiprog3 clone.
Thanks to http://www.obdexpress.co.uk put all the real test report of digiprog3 clone here, which will be very helpful to the new users.


Source:
http://www.mileageprogrammer.com/digiprog3-v4-94-mileage-correction-feedback/

没有评论:

发表评论

Digimaster 3 vs. ODO Master vs.OBDSTAR X300M vs. Digiprog III,

We have picked out 4 best mileage programmers from   OBDexpress.co.uk   in this year : Yanhua Digimaster 3, OBDSTAR ODO Master, OBDSTAR X300...
